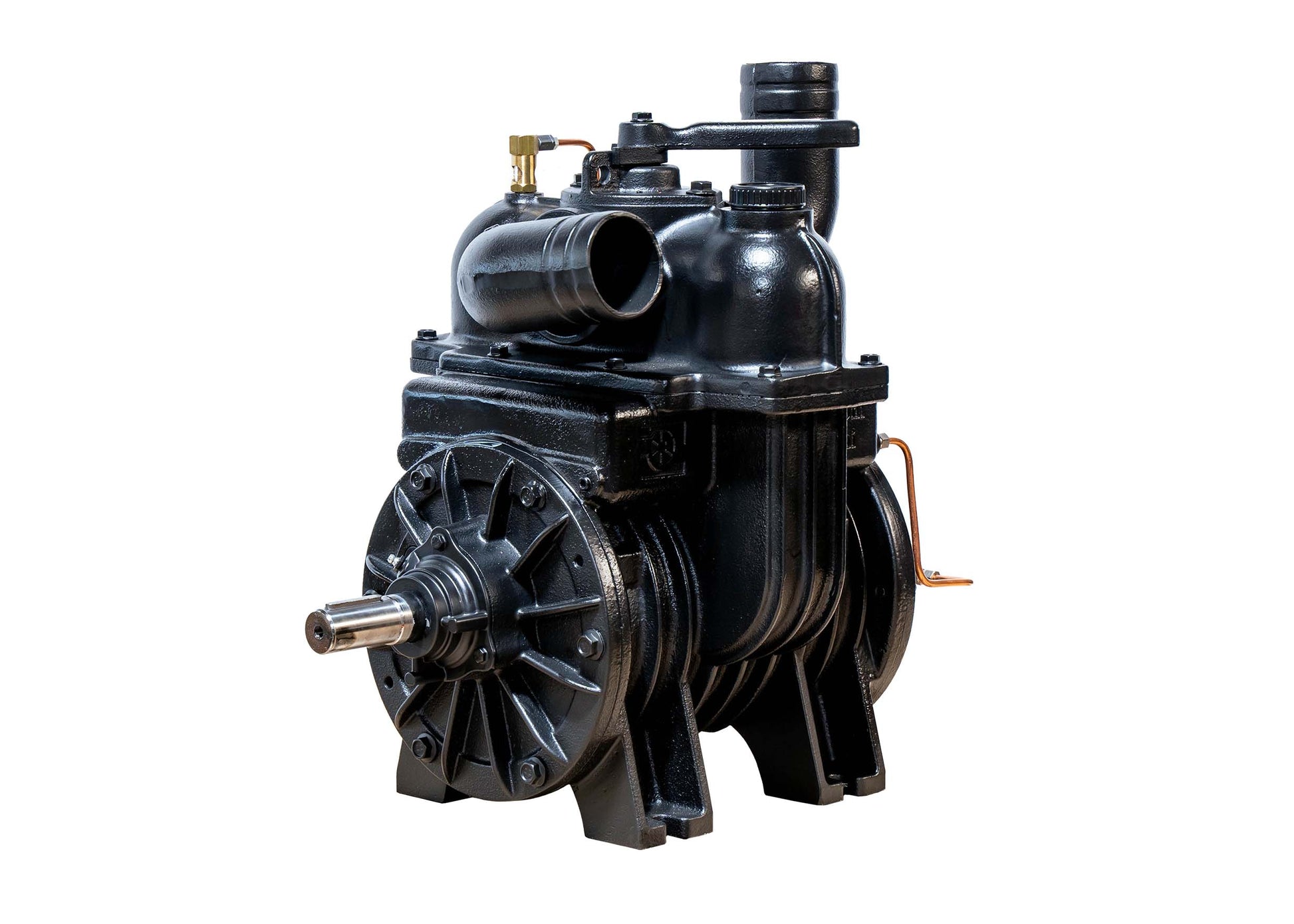

Battioni MEC 5000 Vacuum Pump - 217 CFM - 2 YR WARRANTY
Battioni MEC 5000 Vacuum Pump - 217 CFM - 2 YR WARRANTY
Couldn't load pickup availability
DESCRIPTION
The reliability and strength of the MEC is the result of continuous design and manufacturing improvements accomplished during 40 years of deployments.
It’s simple and practical design made the MEC pumps the product of reference for agricultural and municipalities septic applications.
STANDARD FEATURES
• Forced lubrication, 4-ways valve, non-return check valve
• Available hoses connections: Ø 45 mm / Ø 60 mm / G 2”
• Thread for Overpressure valve: G 1”1/4
SPECIFICATIONS
|
Max Rate of Flow |
(CFM) |
217 |
|
Max rpm |
(rpm) |
1400 |
|
Max Working Pressure |
Bar (PSI) |
2.5 (36) |
|
Max Vacuum % |
InHg |
94% (28") |
|
Power @ max vacuum |
kW (hp) |
11 (14.7) |
|
Net Weight |
Kg (lbs.) |
129 (285) |
|
Dimensions *PUMP LENGTH IS FROM FRONT OF SHAFT* |
In (LxWxH) |
23.81" x 15.35" x 20.63" |
|
Oil Tank Capacity |
(l) |
3 |
INSTRUCTION AND MAINTENANCE MANUAL
