Battioni

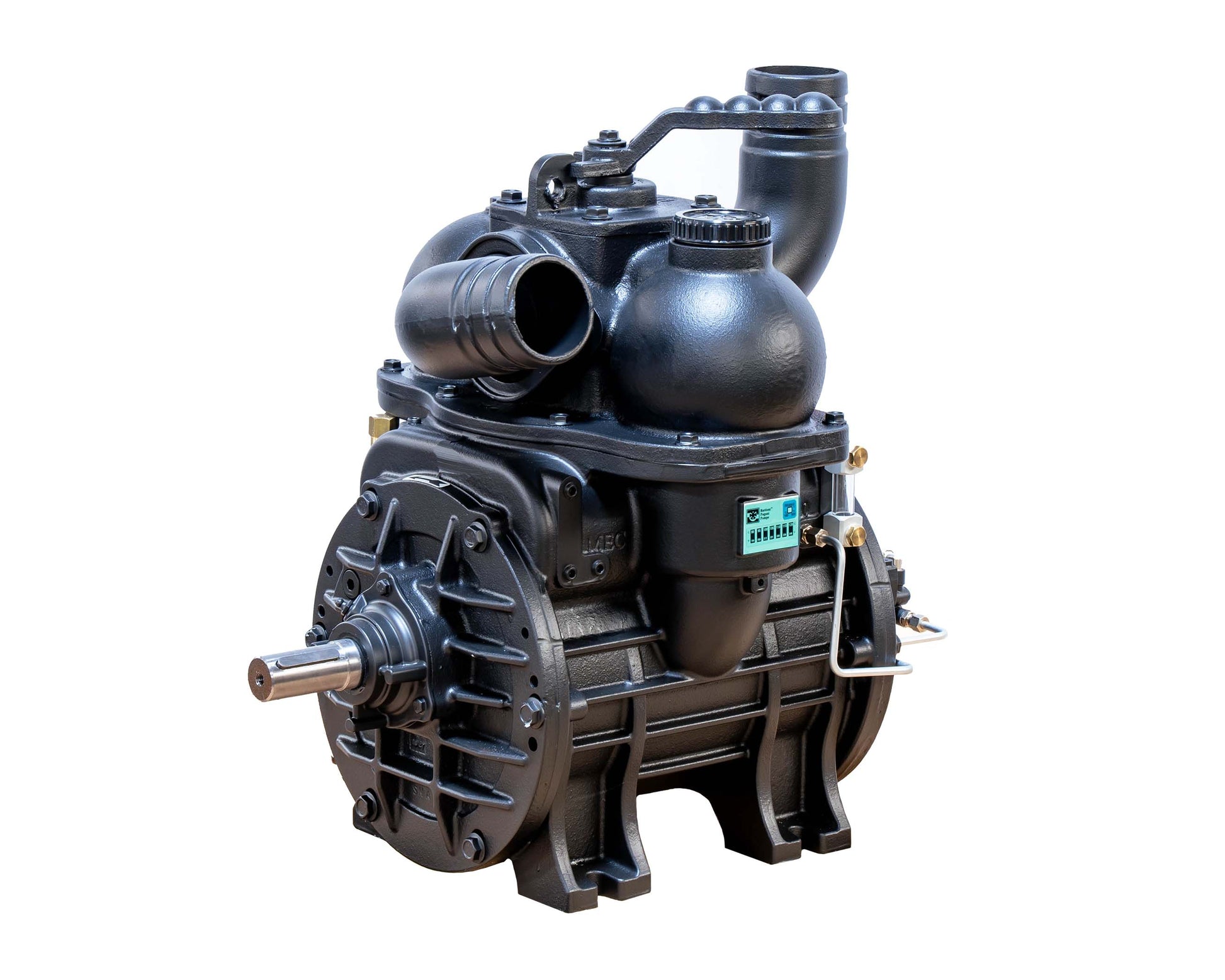

Battioni MEC 9000 Vacuum Pump - 319 CFM - 2 YR WARRANTY
Battioni MEC 9000 Vacuum Pump - 319 CFM - 2 YR WARRANTY
Couldn't load pickup availability
DESCRIPTION
Designed in cooperation with SPRInT, the Team of Engineering and Research of the Department of Industrial Engineering at the University of Parma, the MEC II pump represents a technology breakthrough resulted from a major joint effort in product development and innovative design processes.
The MEC II features the Crash Protection System: a sliding flanges protection mechanism that prevents the housing or rotor to break of in case of vanes crash. The pump is easily repairable inexpensively in field.
STANDARD FEATURES
• Long Life Blades, Crash Protection System, forced lubrication, external oil level indicator, side outlets, exhaust elbow, 4-ways valve, check valve
• Thread for Overpressure valve: G 2”
• Available hoses connections: Ø 76 mm (3”) / Ø 80 mm / Ø 100 mm (4”)
SPECIFICATIONS
|
Max Rate of Flow |
(CFM) |
319 |
|
Max rpm |
(rpm) |
1400 |
|
Max Working Pressure |
Bar (PSI) |
2.5 (36) |
|
Max Vacuum % |
InHg |
95% (28.5") |
|
Power @ max vacuum |
kW (hp) |
17 (22.8) |
|
Net Weight |
Kg (lbs.) |
141 (311) |
|
Dimensions *PUMP LENGTH IS FROM FRONT OF SHAFT* |
In (LxWxH) |
23.81" x 15.35" x 20.63" |
|
Oil Tank Capacity |
(l) |
3 |
