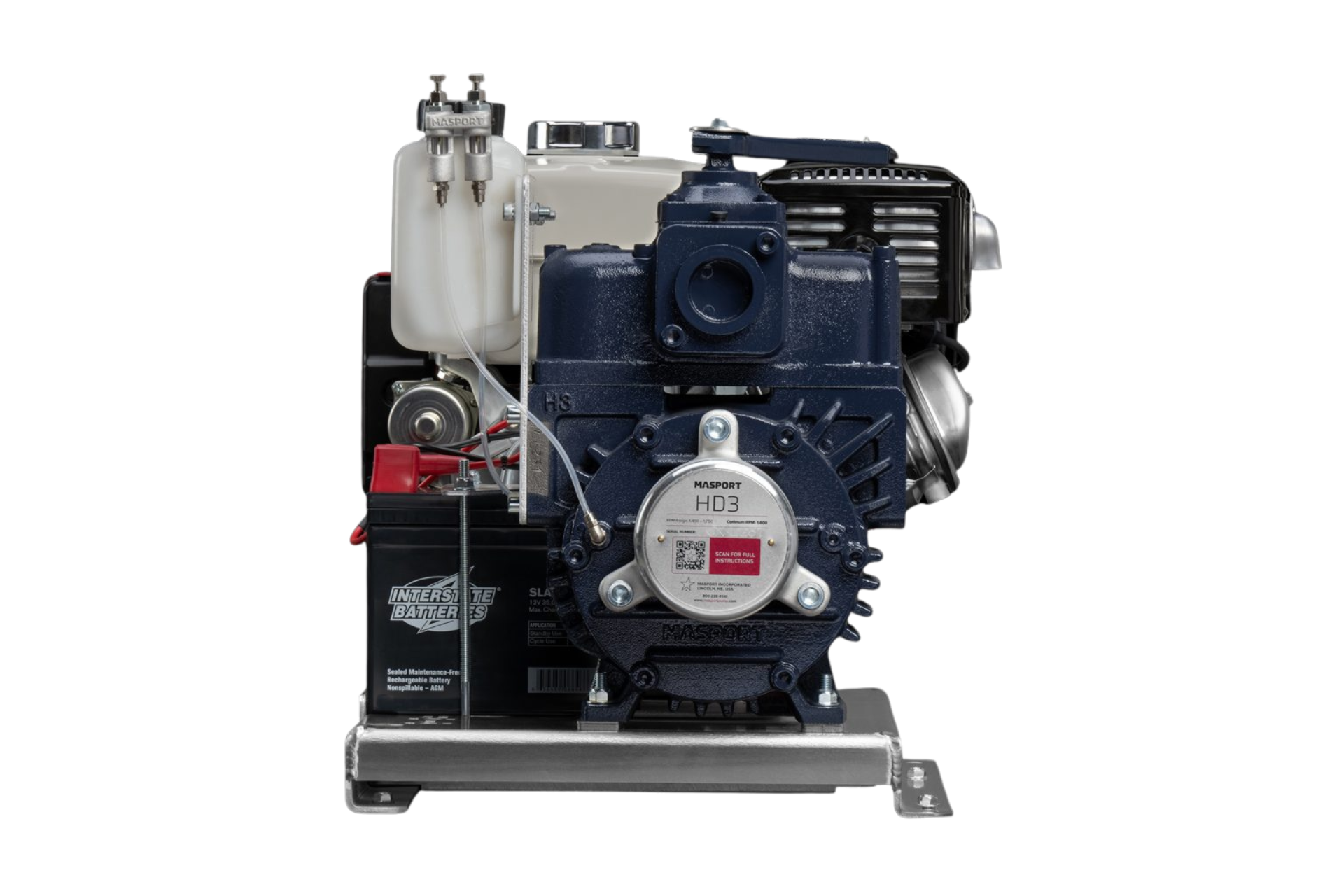

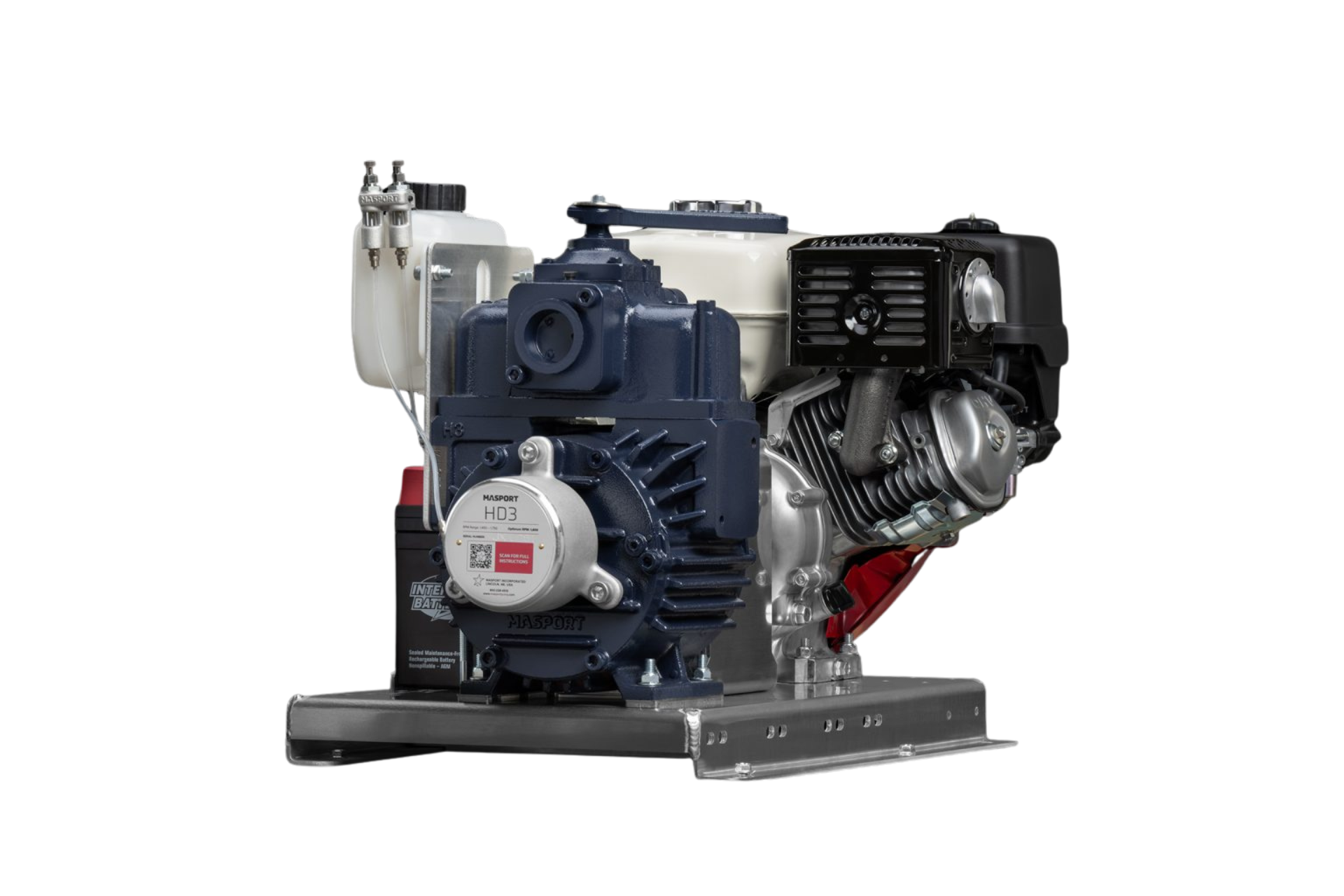

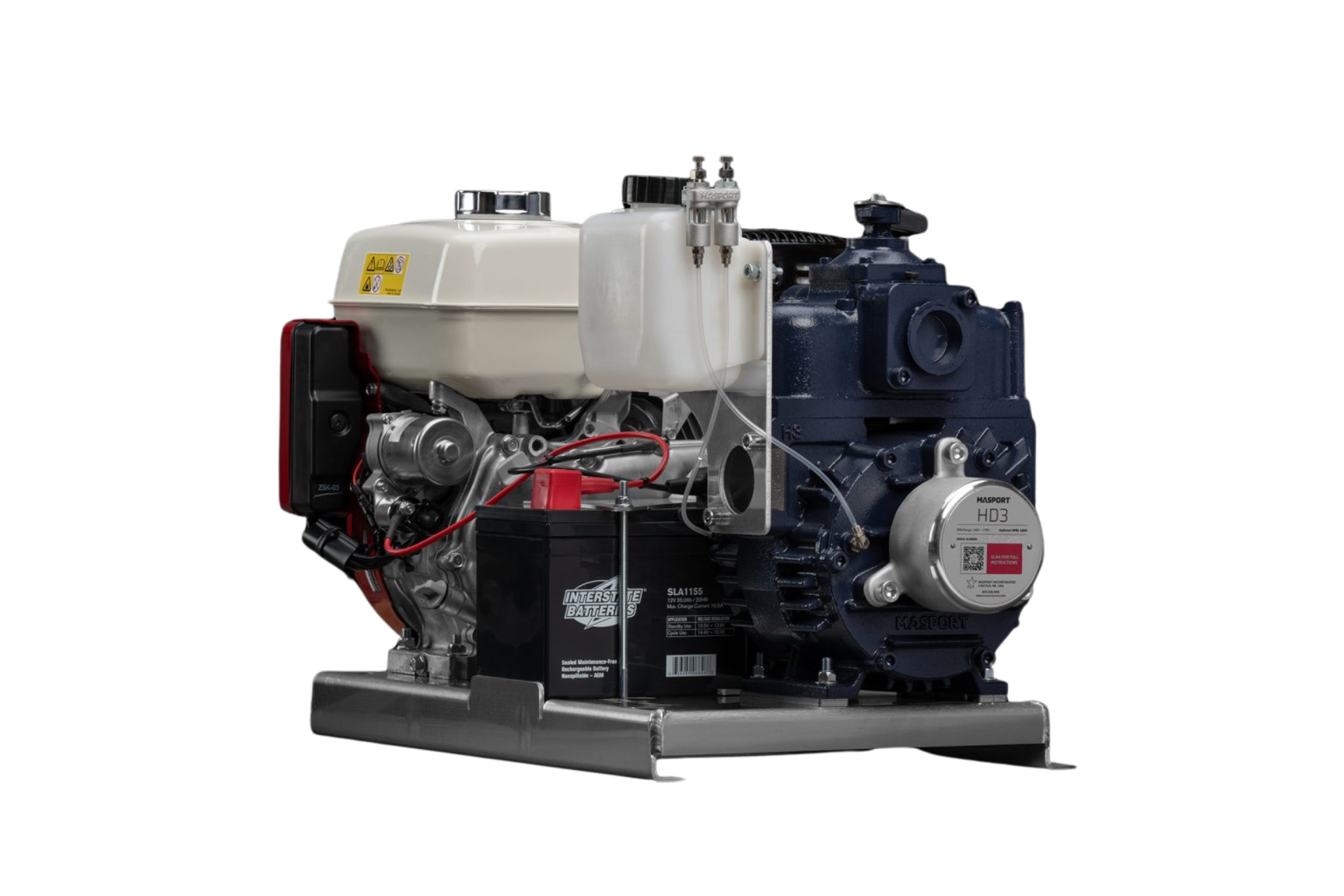

HD3 Pro Pack 1000 - 112 CFM - 1 YR WARRANTY

The HD3 Pro Pack 1000 is the base model of the H3 Series Rotary Vacuum Pump Engine Drive Systems.
Available in two engine types.
Operates in both Vacuum and Pressure.

Technical Specs:

• Airflow

  112 CFM

• Port Size

  1 1/2″

• Cooling Type

  Air Cooled

• Optimal Tank Size

  500 to 1,000 Gallons

• Oiling System

  Plastic Reservoir with Adjustable Drippers

• Honda Engine

  9 HP Gas Engine

• Weight (approx.)

  245 lbs (9HP Gas)

• Max Vacuum (Continuous)

  20″ Hg

• Max Vacuum (Intermittent)

  27″ Hg

• Max Pressure (Continuous)

  15 P.S.I.G.

• Max Pressure (Intermittent)

  15 P.S.I.G.
