HD75 Pro Pack Plus 2500 - 230 CFM - 1 YR WARRANTY

HD75 Pro Pack Plus 2500 - 230 CFM - 1 YR WARRANTY

$8,070.29
$8,070.29
Sale Sold out

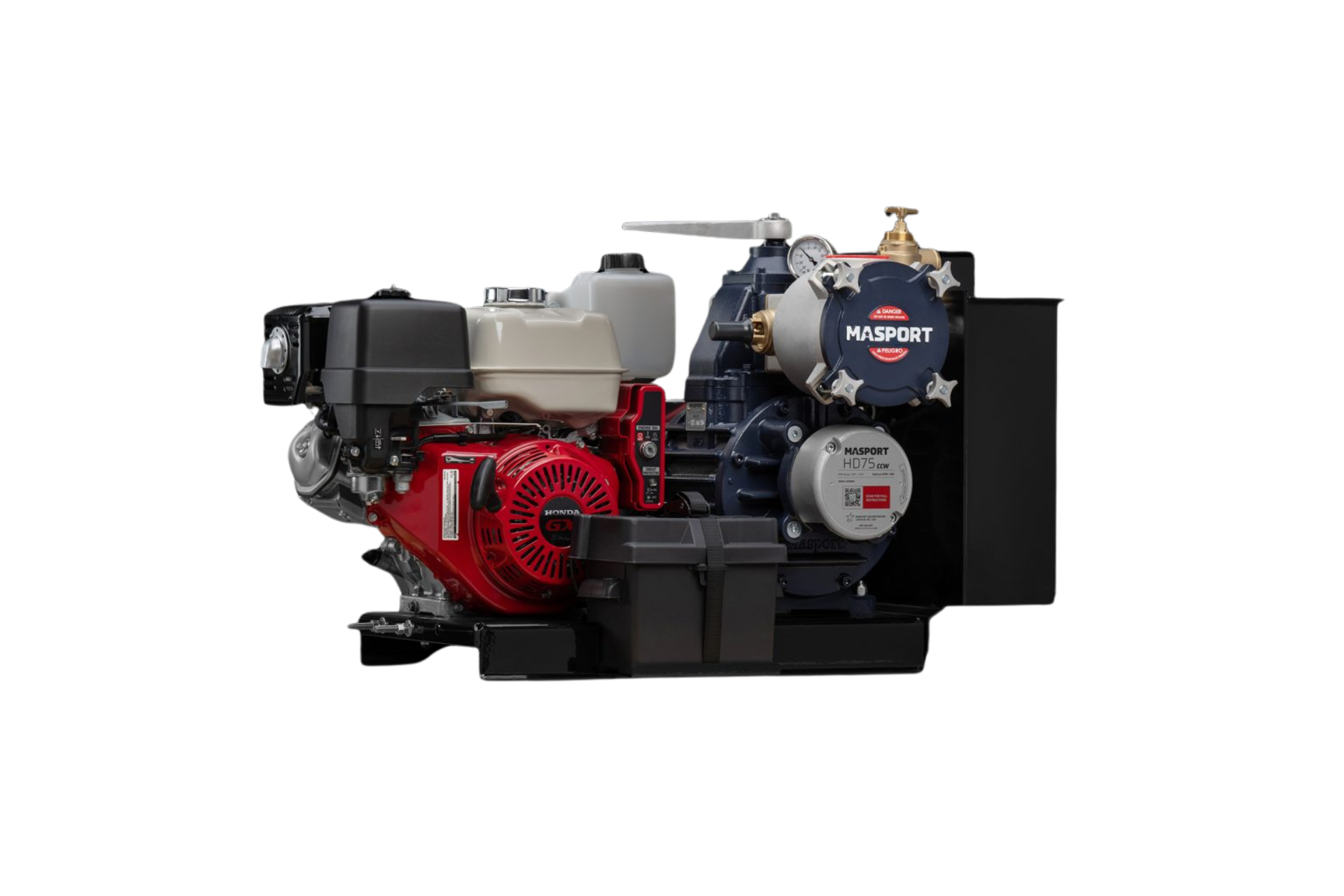

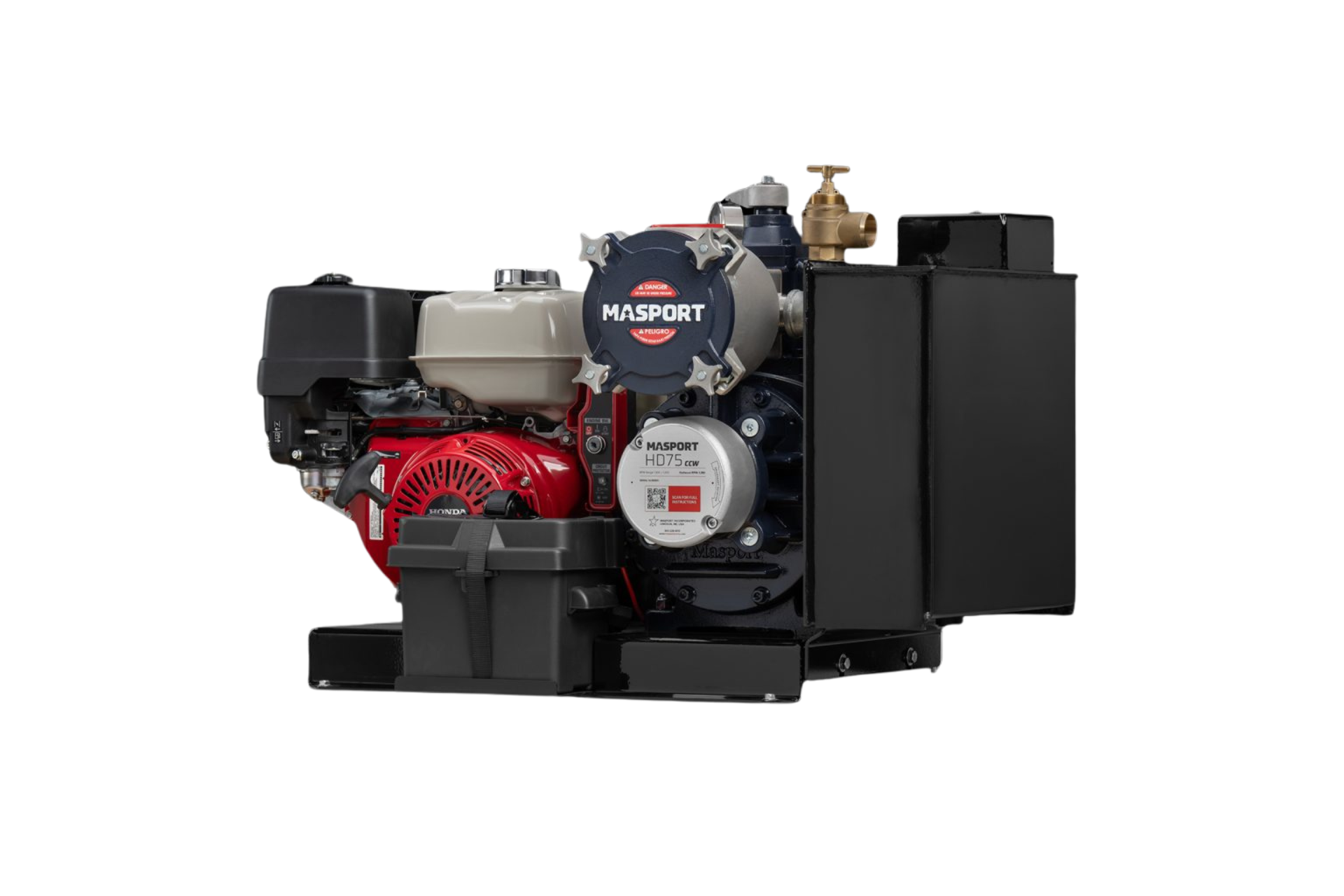

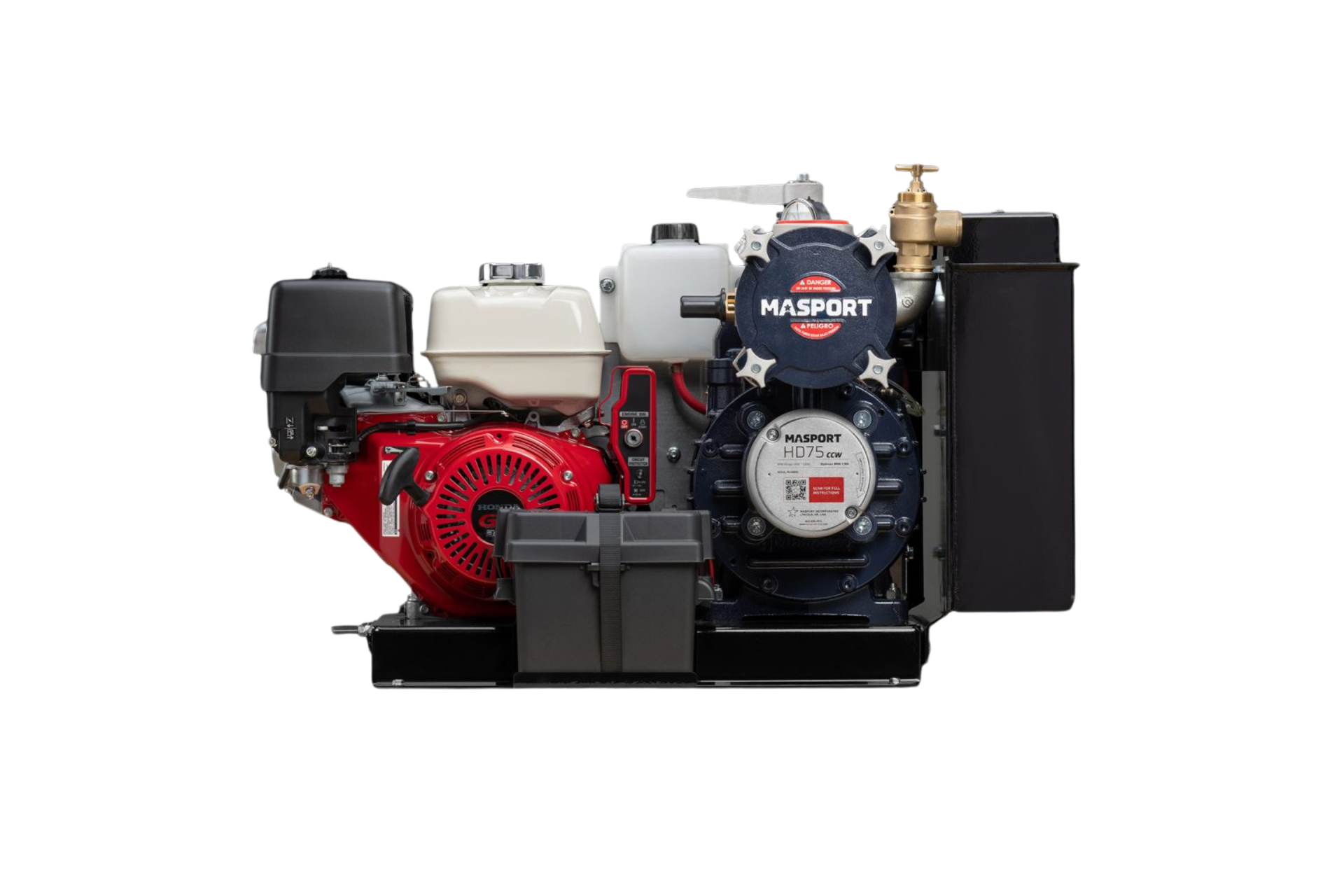

The HD75 Pro Pack Plus 2500 is the most integrated model of the H75 Series Rotary Vacuum Pump Engine Drive Systems.
Available in one engine size/type.
Operates in both Vacuum and Pressure.

Technical Specifications:

  • Airflow

    230 CFM

  • Port Size

    3″

  • Optimal Tank Size

    1,500 to 2,500 Gallons

  • Oiling System

    Automatic Oil Pump

  • Oil Reservoir Options

    Plastic

  • Honda Engine

    13 HP Gas Engine

  • Airflow

    230 CFM

  • Weight (approx.)

    555 lbs

  • Max Vacuum (Continuous)

    20″ Hg

  • Max Vacuum (Intermittent)

    27″ Hg

  • Max Pressure (Continuous)

    20 P.S.I.G.

  • Max Pressure (Intermittent)

    35 P.S.I.G.

  • Cooling Type

    Air Cooled
View full details
