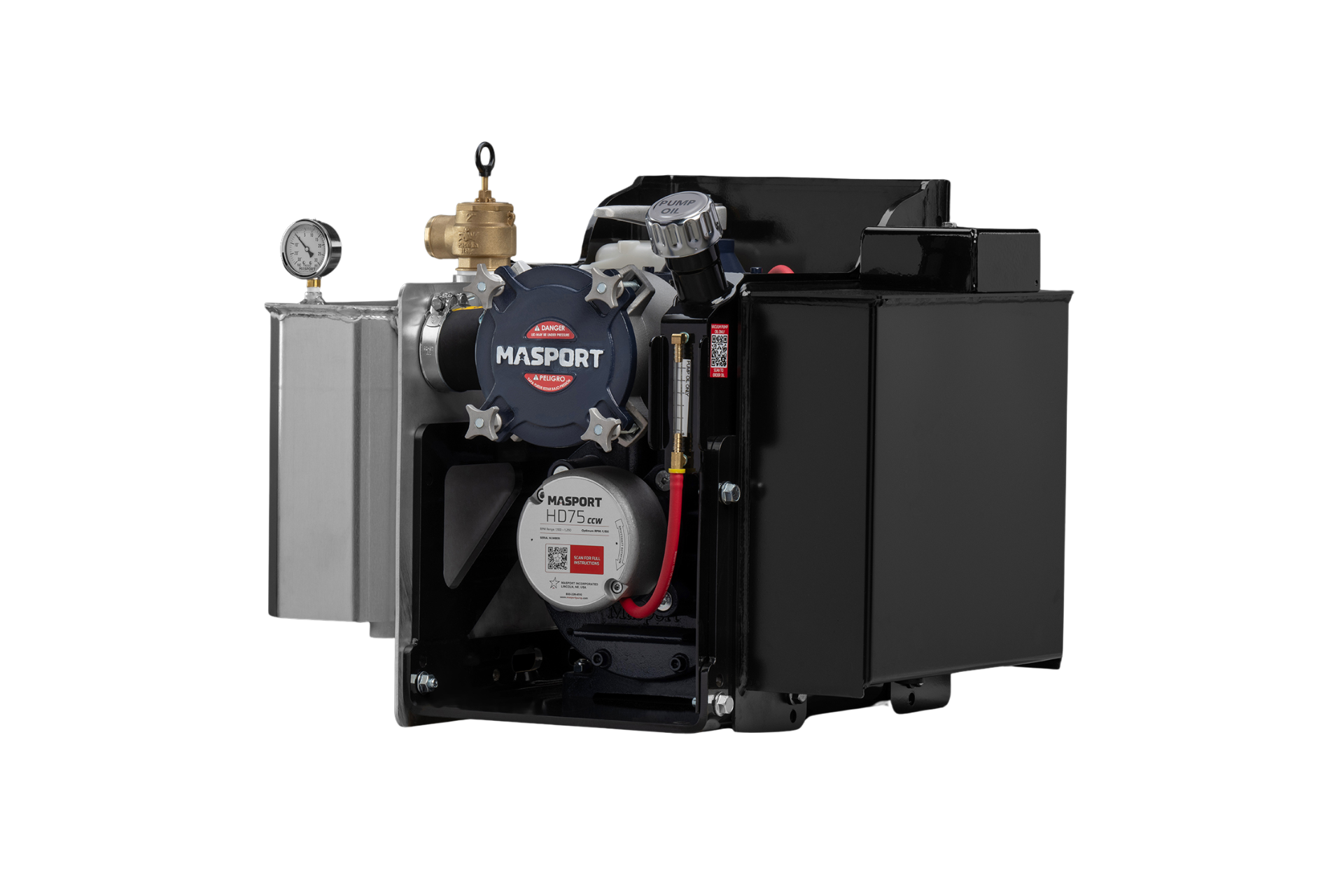

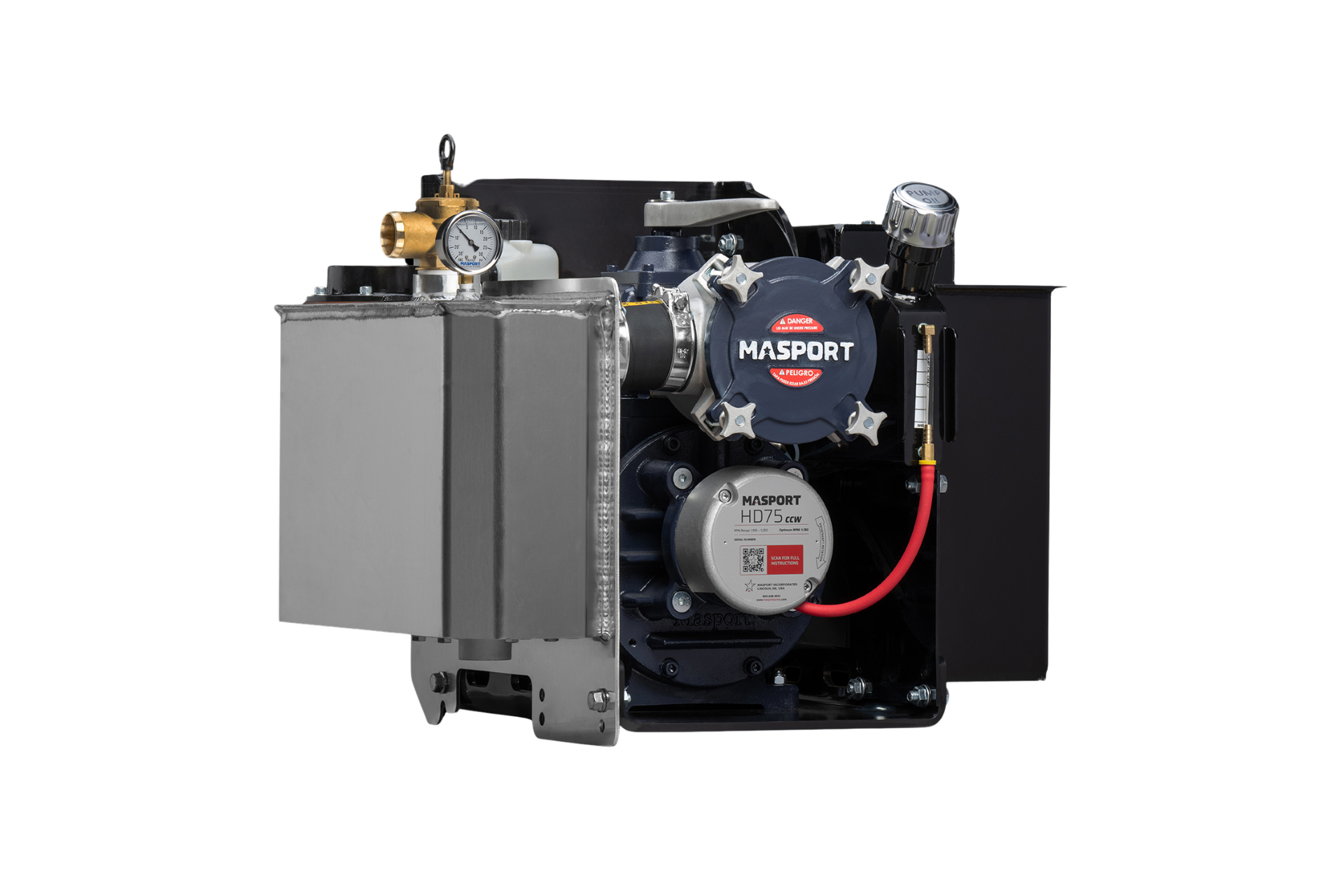

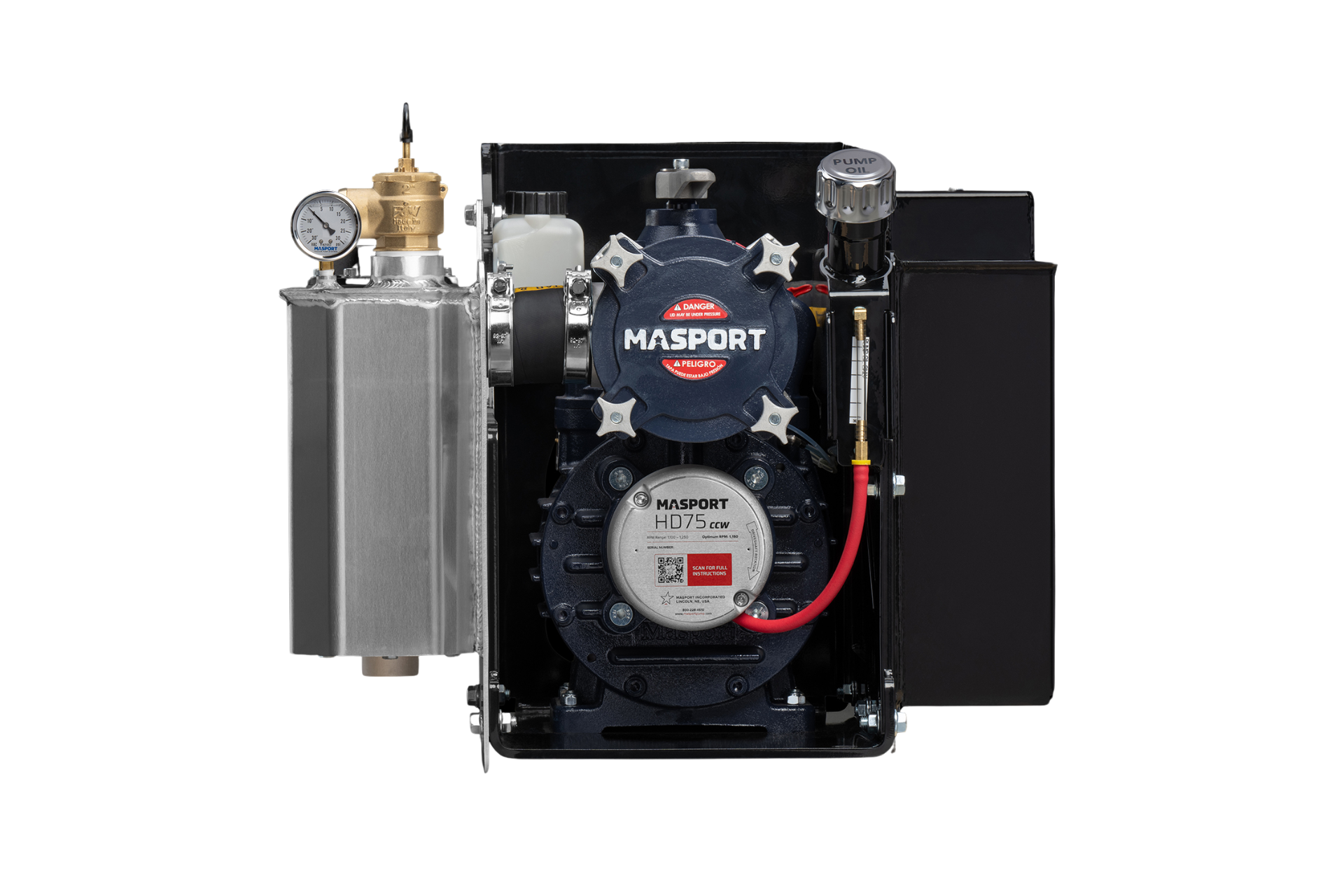

Masport HD75V Plug & Play - 230 CFM - 1 YR WARRANTY

The HD75V Plug & Play System is designed for easy installation, operation, and maintenance, giving you and your drivers quicker and easier access to the components for daily operations. Performs both Vacuum and Pressure.

Specifications:

• Airflow

  230 CFM

• Port Size

  3″

• Cooling Type

  Air Cooled

• Optimal Tank Size

  1,500 to 2,500 Gallons

• Drive Options

  Gearbox (CW / CCW), Hydraulic

• Oiling System

  Automatic Oil Pump

• Oil Reservoir Options

  Steel

• Weight (approx.)

  610 lbs (Gearbox), 615 lbs (Hydraulic)

• Max Vacuum (Continuous)

  20″ Hg

• Max Vacuum (Intermittent)

  27″ Hg

• Max Pressure (Continuous)

  20 P.S.I.G.

• Max Pressure (Intermittent)

  35 P.S.I.G.

Dimensions – Gearbox
