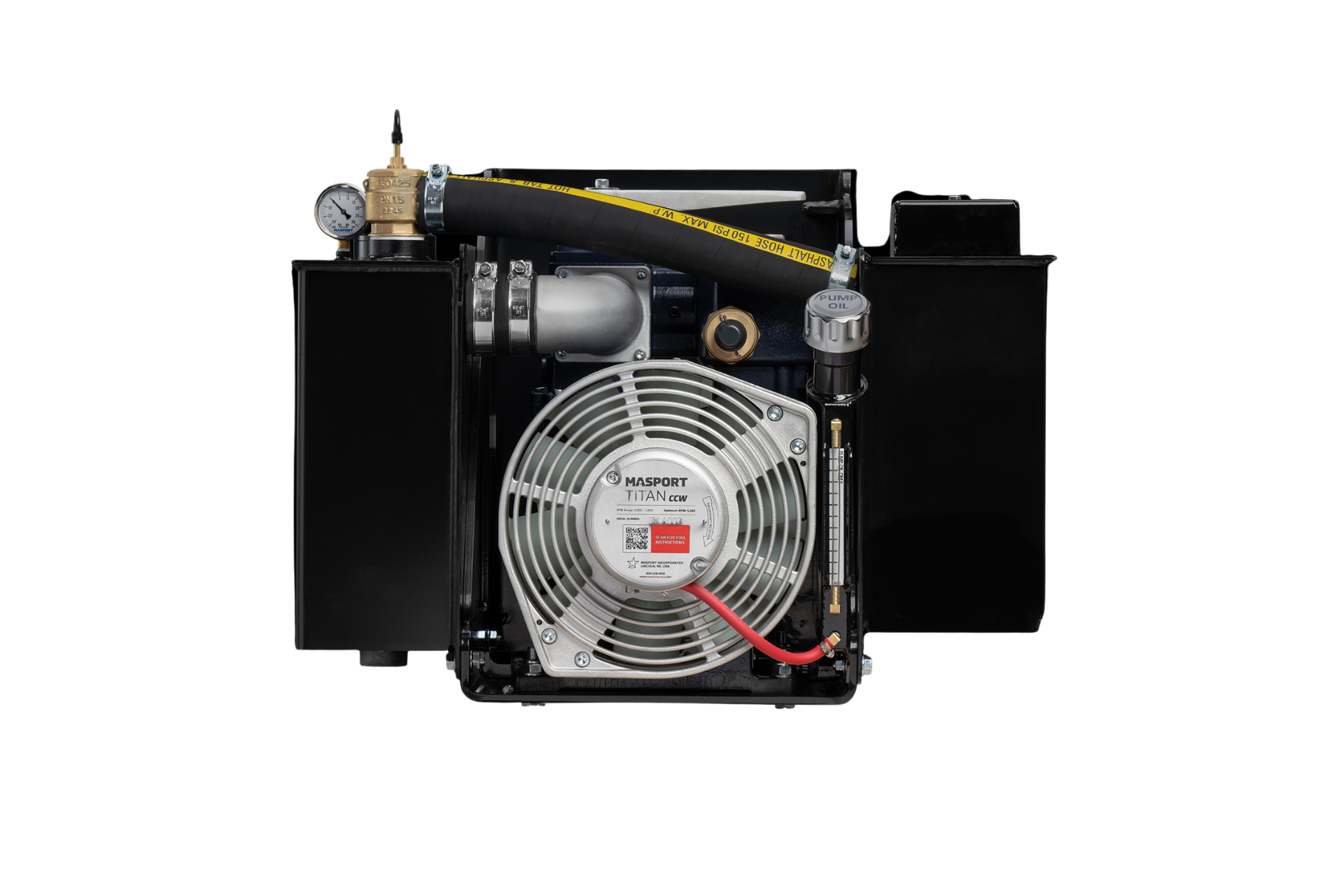

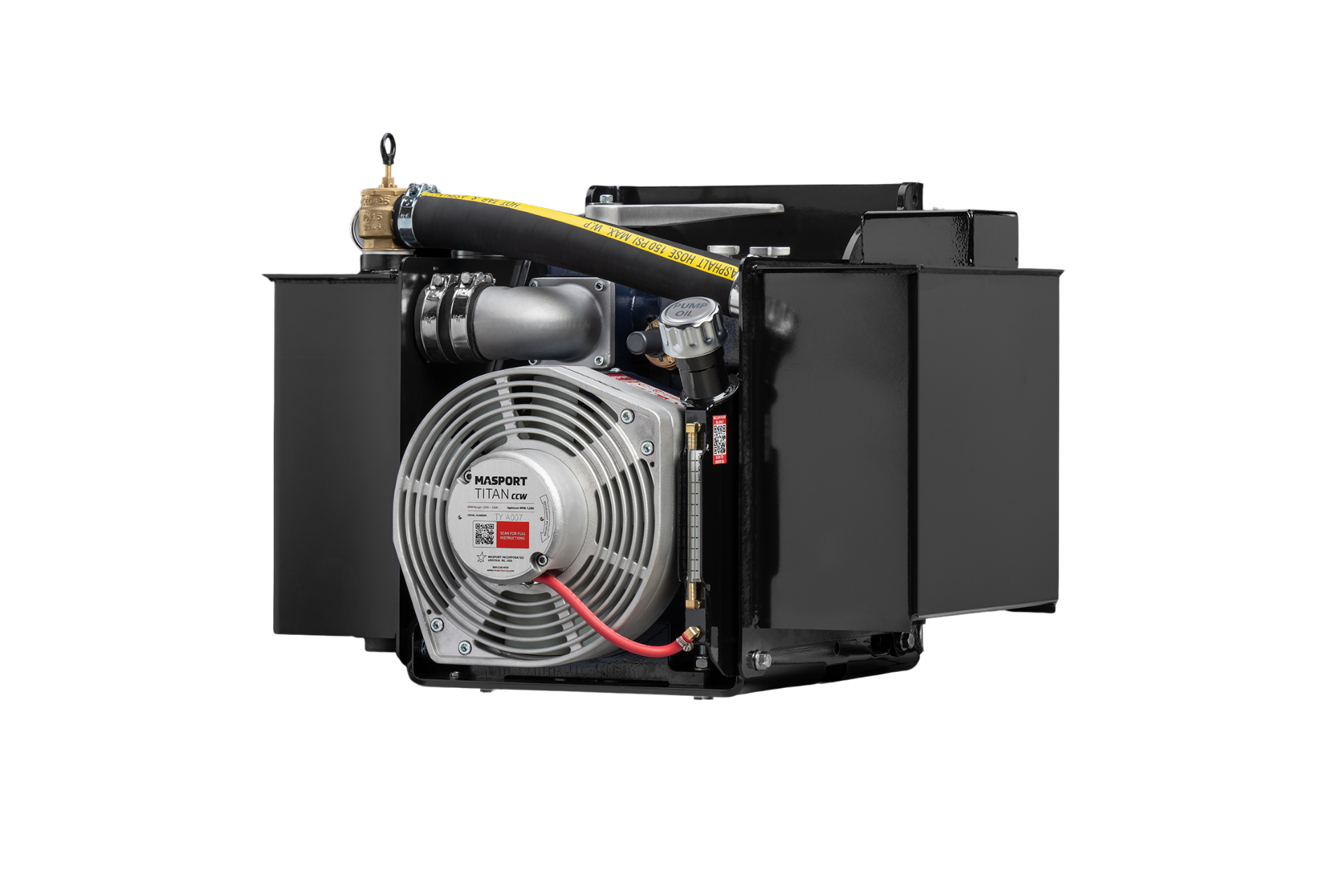

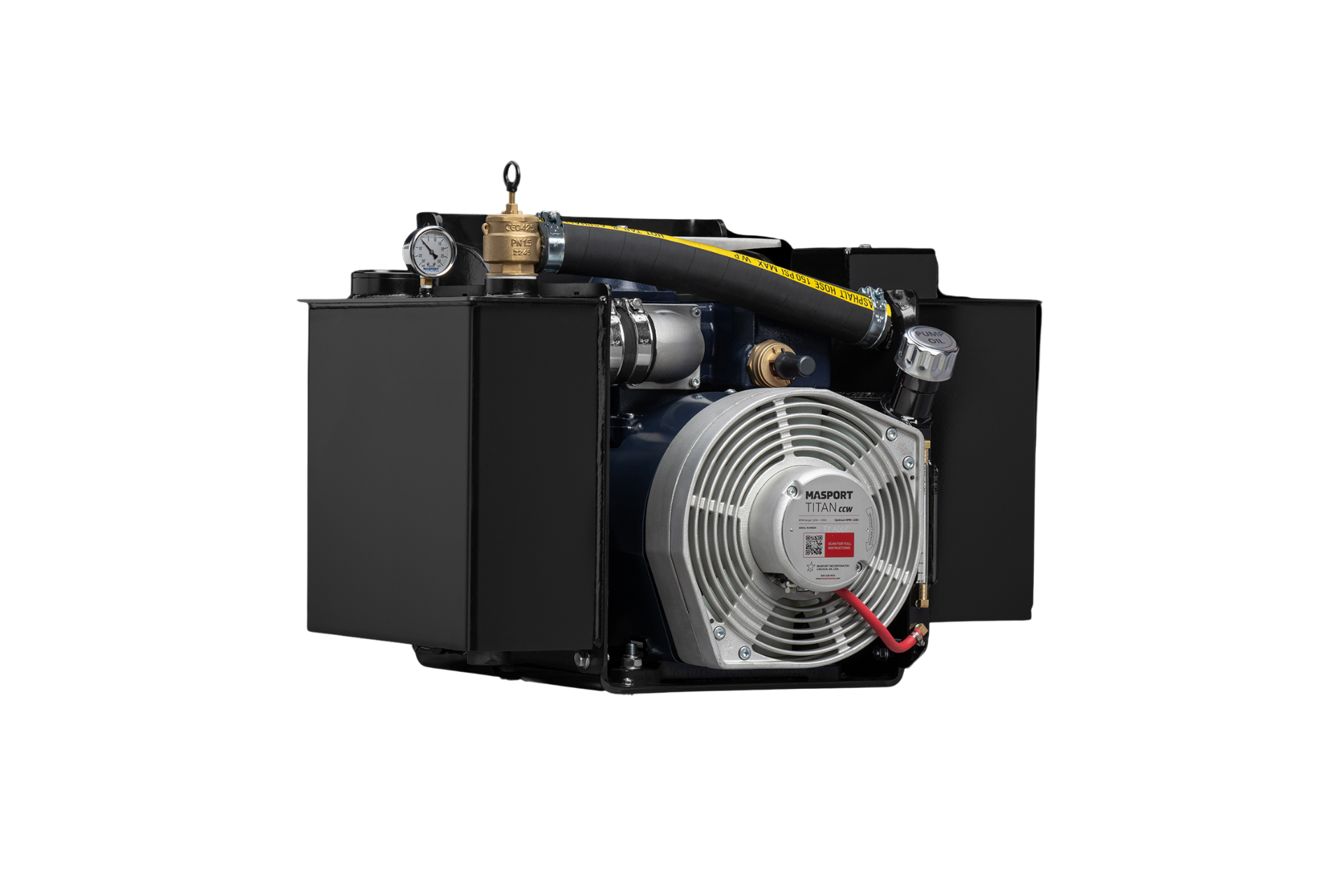

Masport Titan Plug & Play - 407 CFM - 1 YR WARRANTY

The TITAN Plug & Play System is designed for easy installation, operation, and maintenance, giving you and your drivers quicker and easier access to the components for daily operations. Performs both Vacuum and Pressure.

Specifications:

• Airflow

  407 CFM

• Port Size

  3″

• Cooling Type

  Fan Cooled

• Optimal Tank Size

  2,500 to 6,000 Gallons

• Drive Options

  Gearbox (CW / CCW), Hydraulic

• Oiling System

  Automatic Oil Pump

• Oil Reservoir Options

  Steel

• Weight (approx.)

  905 lbs (Gearbox), 910 lbs (Hydraulic)

• Max Vacuum (Continuous)

  22″ Hg

• Max Vacuum (Intermittent)

  27″ Hg

• Max Pressure (Continuous)

  20 P.S.I.G.

• Max Pressure (Intermittent)

  30 P.S.I.G.

Dimensions – Gearbox
