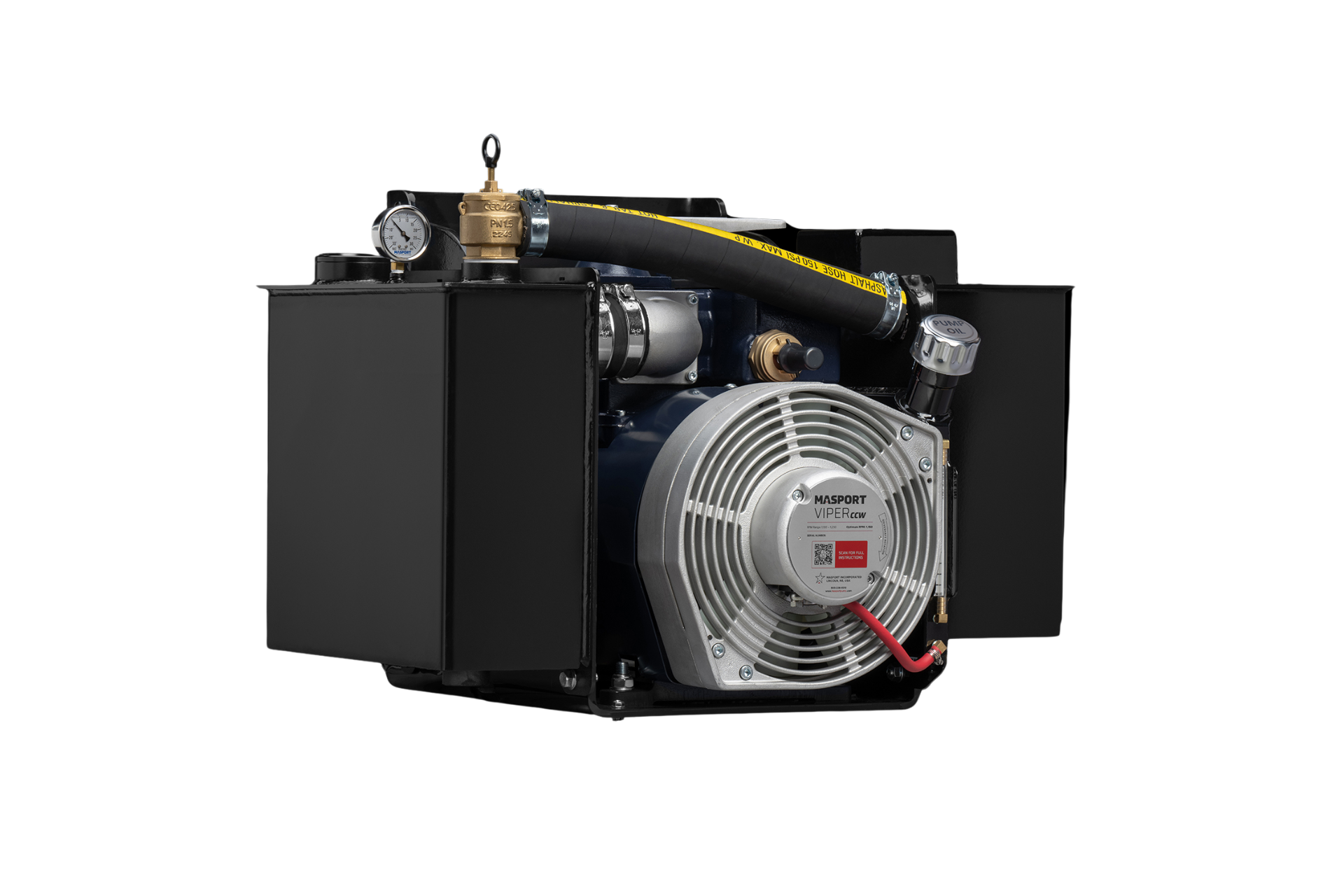

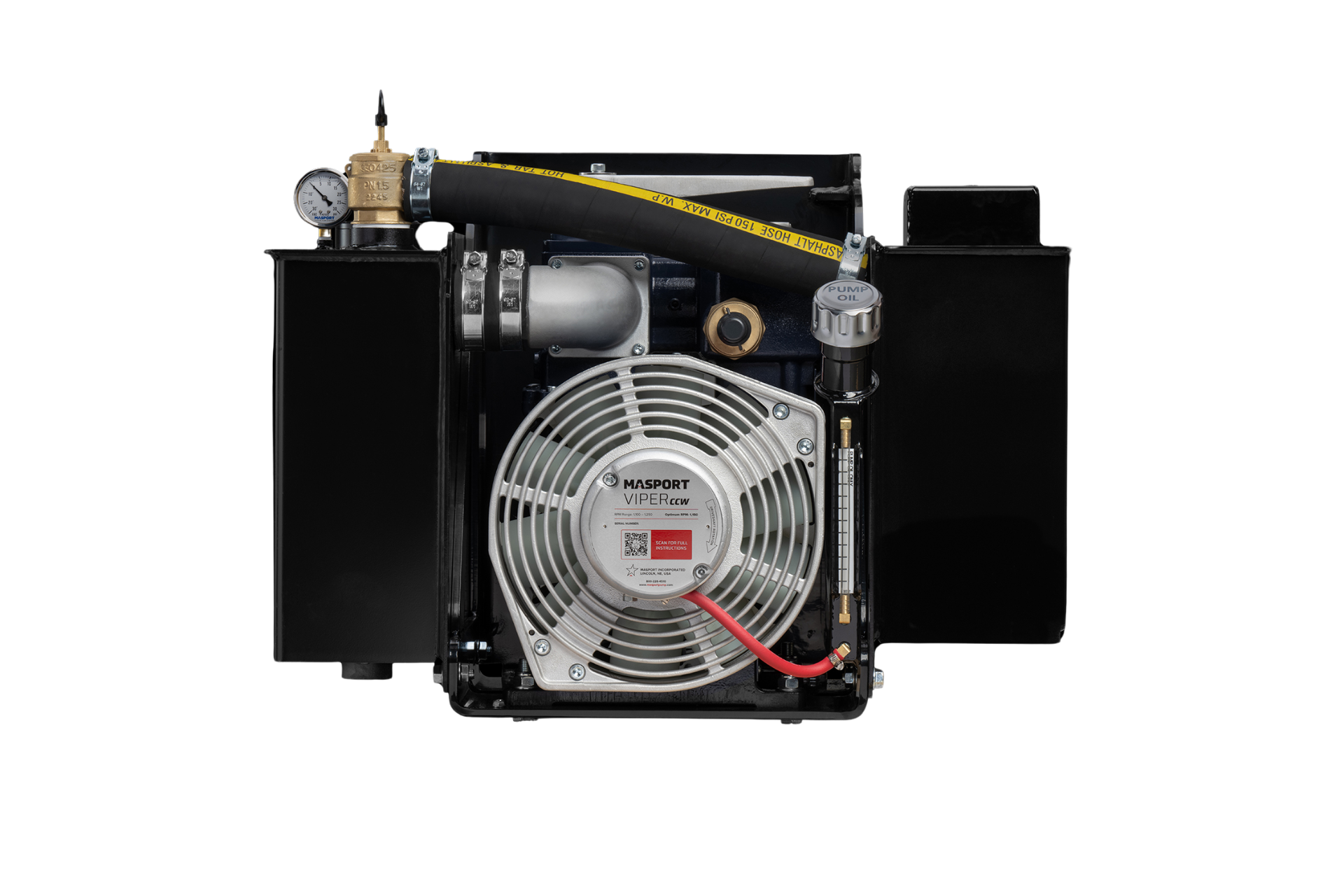

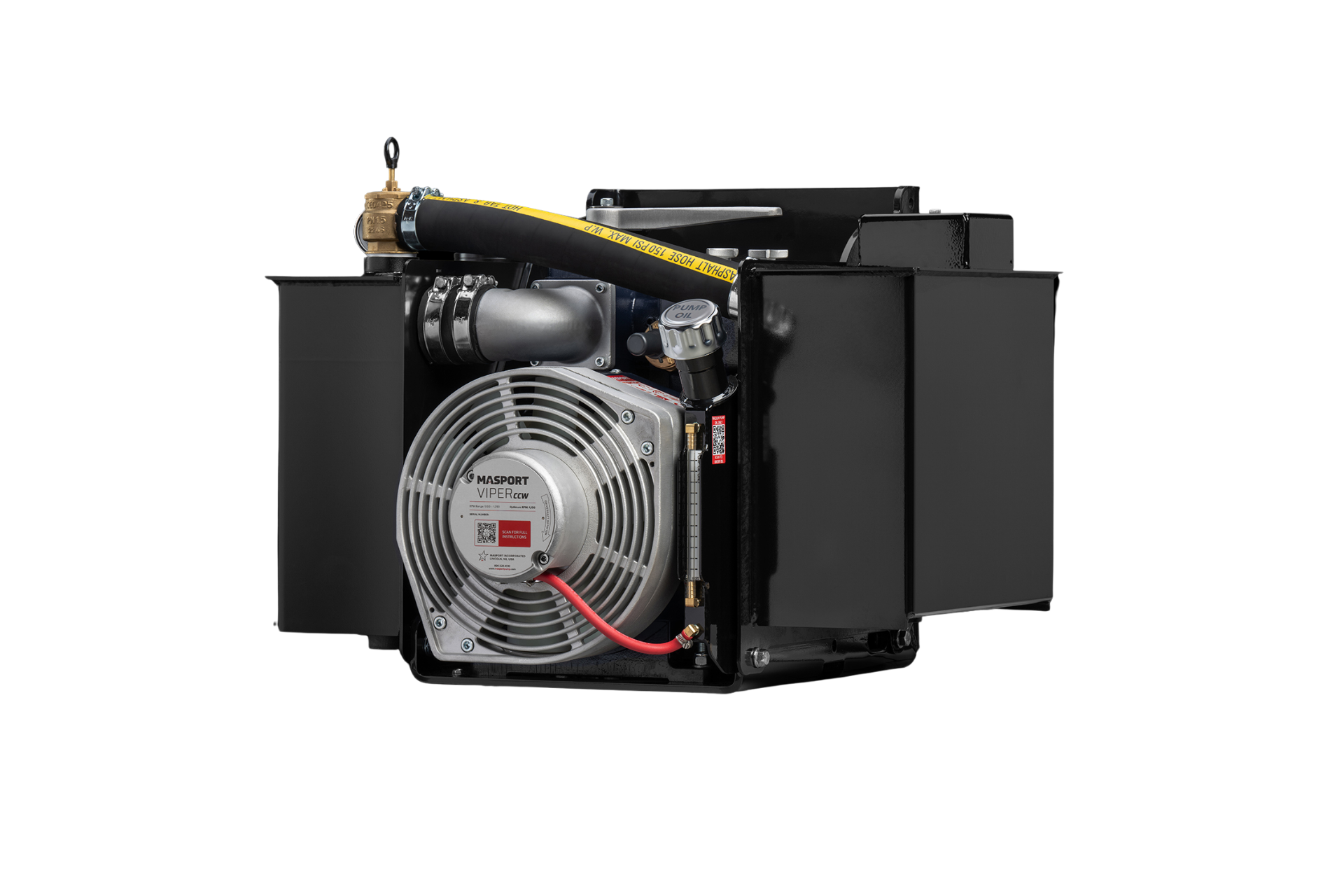

Masport Viper Plug & Play - 350 CFM - 1 YR WARRANTY

The VIPER Plug & Play System is designed for easy installation, operation, and maintenance, giving you and your drivers quicker and easier access to the components for daily operations. Performs both Vacuum and Pressure.

Specifications:

• Airflow

  350 CFM

• Port Size

  3″

• Cooling Type

  Fan Cooled

• Optimal Tank Size

  2,500 to 4,500 Gallons

• Drive Options

  Gearbox (CW / CCW), Hydraulic

• Oiling System

  Automatic Oil Pump

• Oil Reservoir Options

  Steel

• Weight (approx.)

  780 lbs (Gearbox), 785 lbs (Hydraulic)

• Max Vacuum (Continuous)

  22″ Hg

• Max Vacuum (Intermittent)

  27″ Hg

• Max Pressure (Continuous)

  20 P.S.I.G.

• Max Pressure (Intermittent)

  30 P.S.I.G.

Dimensions – Gearbox
