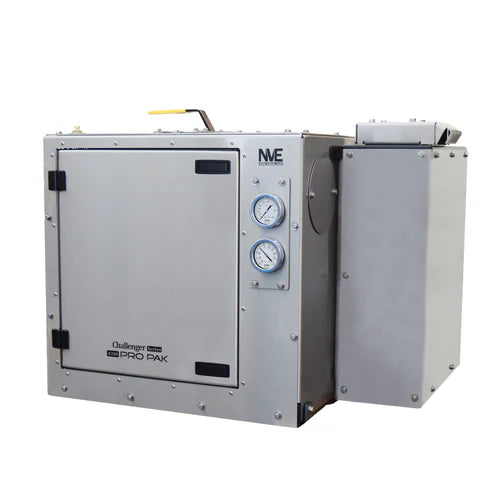

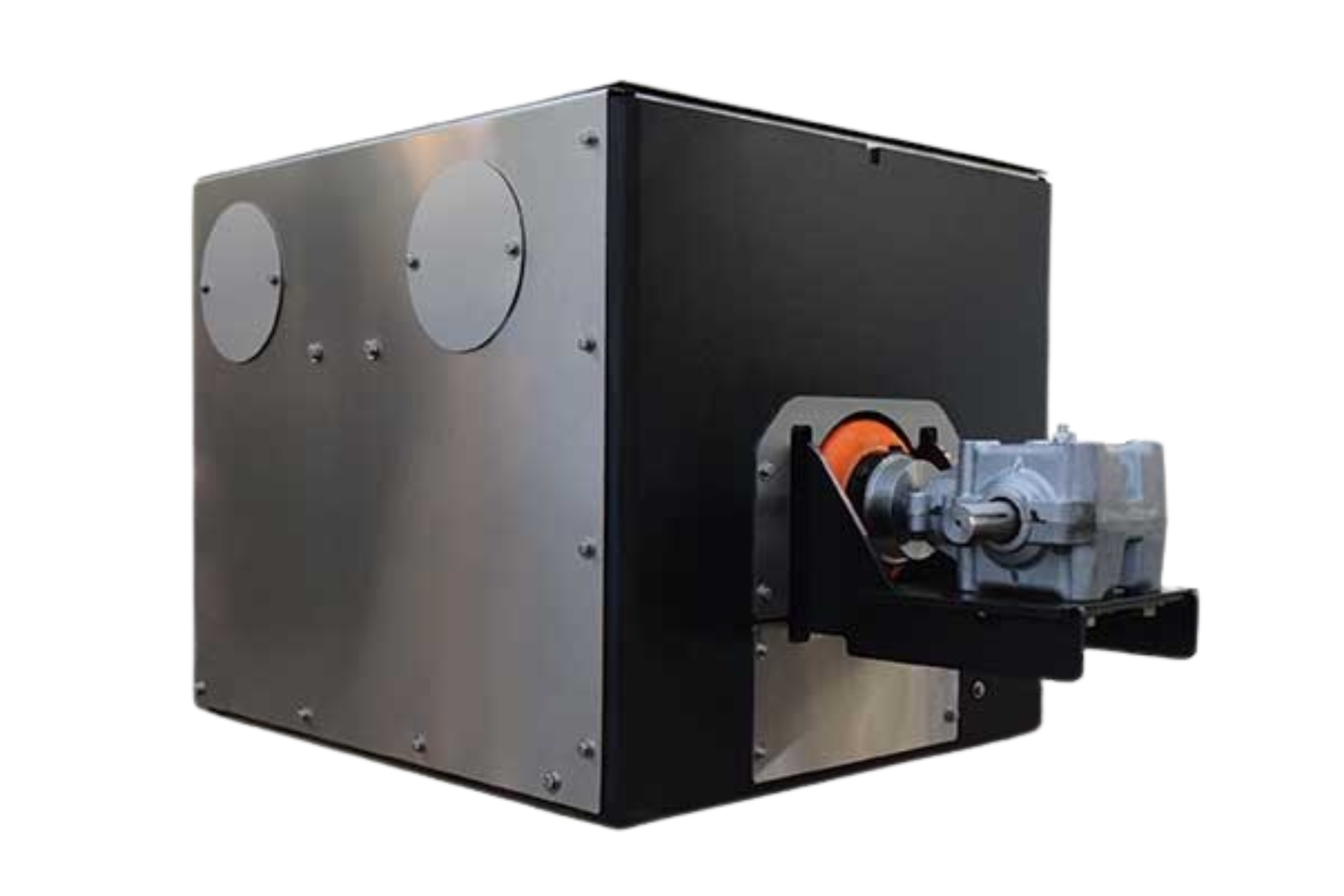

PRO PACK FRAME MOUNT GEARBOX DRIVE
- Improved slim design
- 3/8“ powder coat painted frame
- Stainless steel cabinet
- Easily accessible service points
- Blower flush kit
- Internal ballast silencing
- Ballast check valve for pressure operation
- 500 series right angle 1:2 ratio gearbox
- 4310 – spiral beveled gear
- 4310 L 45 1/4” W 28 3/8” H 26 15/16”
- 4310 With Ultra L 45 1/4” W 38 3/8” H 26 15/16”
- 4307 L 44” W 28 3/8” H 29 3/4”
- Continuous duty performance at maximum vacuum
- Tri-lobe design with precision machining
- Ballast port manifold cools blower through air injection
- Range of airflow performance available to accommodate power
- Oil-less operation
- 4” hose barbed adjustable porting for the intake and exhaust
- Integral final filter with easy access cleaning
- 4-Way pressure/vacuum change over valve
- Designed, built, and supported in the USA
| SPECIFICATIONS |
|
4310 |
| Air flow - free air |
|
940 cfm @ 4500 rpm |
| *Full vacuum |
|
- |
| Maximum pressure |
|
15 psi |
| Maximum pressure |
|
4000 rpm | 4500 rpm |
| Hp required @ 27” hg |
|
51.4 | 58 |
| Hp required @ 10 psi |
|
39.7 | 44 |
| Hp required @ 15 psi |
|
65.5 | N/A |
| Porting size |
|
4” |
| Shaft size (3/8” key) |
|
1 1/2” |
| Blower dimension |
|
L 27 11/16” W 23 7/16” H 26 15/16” |
| Approximate weight |
|
456 lbs |
