Super power, super productivity. The NVE 607 PRO Heavy Duty Vacuum Pump is one of our toughest rotary vane pumps. Built with a 4-way valve that allows you to change from vacuum to pressure – its dependable and durable design allows for smooth working, even the most demanding industry applications. You can also count of our ever-ready service team to keep your equipment in peak working condition always.

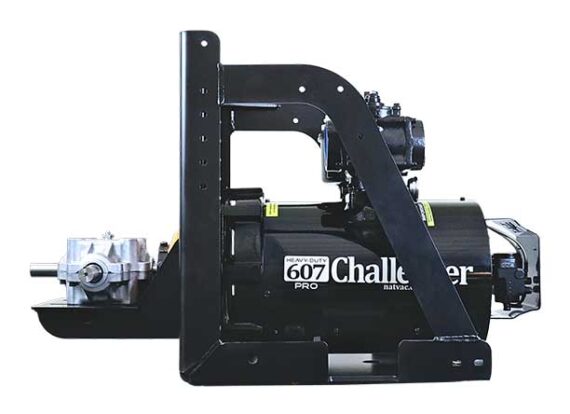

607 PRO PUMP STAND COMPLETE
- Vacuum pump included; specify rotation and cooling type
- Package available as fan cooled and liquid cooled models
- 400 series three-shaft gearbox accommodates clockwise and counterclockwise rotation
- Coupler set with shear protection
- Easy-align, adjustable gearbox bracket
- Also available with hydraulic drive
- L 43 3/4” W 18” H 27 1/2”
Feature and Benefits
- Lifetime warranty on the housing against cracking
- Fan or Liquid Cooled
- Ductile iron housing (tough like steel).
- The NVE bi-rotational, four port oil pump is exclusive to our “oil management system” delivering the precise amount of oil required for any job. Easily adjustable to 5-24 ounces per hour.
- Rugged braided stainless steel oil delivery lines Vacuum relief boss
- Vane flush port with valve
- Vane wear inspection port
- Integral, easily accessible, and cleanable stainless steel final filter
- Proven crash protection allowing all major components to survive a catastrophic failure
- Remote mount 5 quart see through oil tank for constant oil level monitoring
- Thermometer to monitor exhaust temperature
- Multiple drive options (gearbox, belt, hydraulic, and direct)
- Two year warranty against manufacturer defect
- Designed, built, and supported in the USA
| SPECIFICATIONS | 607 PRO VACUUM PUMP |
| Air flow - free air | 380 CFM |
| *Full vacuum | 29 “ Hg |
| Maximum pressure | 30 PSI |
| *Operating Range - RPM | 1250 |
| Hp required @ Vacuum | 25 |
| Hp required @ 20 psi | 28 |
| Porting size | 3” |
| Shaft size (3/8” key) | 1 1/2” |
| Pump dimension | L 29 5/8” W 14 9/16” H 32 11/16” |
| Approximate weight | 390 lbs |
